Smartgyro

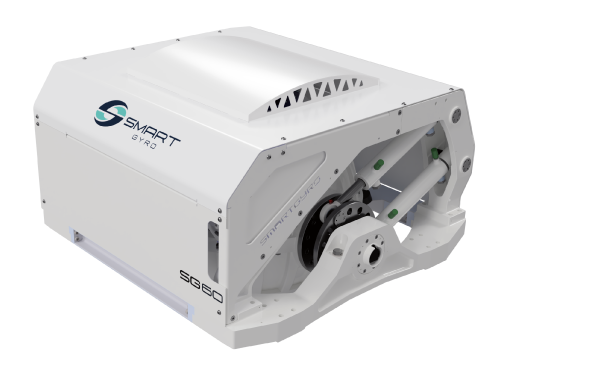

SG60 Gyro Stabilizer
smartgyro 1

The Smartgyro SG60 is the gyro stabilizer of choice for a range of boats
from 55-65 ft. Ideal for both new builds and refit installations, the
stabilizer can be fully serviced on-board the vessel without the need to lift
out for maintenance, ensuring significant time and cost savings.

SG60 SPECIFICATIONS

Target Boat
55 – 65ft or up to 50 tonnes

Maximum Rated Speed
5,500 RPM

Angular Momentum
12,500 Nms at max. rated speed

Anti-Rolling Torque
25,000 Nm at max. rated speed

Input Voltage (AC)
220V nominal, 50/60 Hz, single phase

Input Voltage (DC)
24 Vdc

Envelope Dimensions
1.08 x 1.11 x 0.87 m [42.4 x 43.7 x 34.3 in]

Weight
910 kg [2006 lbs]



THE WATER IS NO PLACE
FOR COMPROMISE

MODULAR DESIGN

MODULAR DESIGN

The modular mechanical design enables seamless installation and onboard maintenance, for significant time and cost savings.

LIQUID COOLING

LIQUID COOLING

The liquid cooling system dissipates heat generated by the motor and spinning bearings, while also cooling the inverter and hydraulic manifold.

PERFORMANCE

PERFORMANCE

The Smartgyro automatically locks the gyro's counteracting forces during high-speed turns to make for smoother boating.

BRAKING SYSTEM

BRAKING SYSTEM

The pressurised, closed loop braking system dynamically controls the gyro using hydraulic cylinders and proportional valve.

CONTROL ELECTRONICS

CONTROL ELECTRONICS

The gyro module uses motion sensors and an Inertial Measuring Unit to monitor real-time boat behaviour. The electronic module can diagnose and warn the operator with specific messages.

VACUUM ENCLOSURE

VACUUM ENCLOSURE

To increase overall efficiency the flywheel rotates in a sealed vacuum, minimising air drag which increases performance, lowers heat and reduces power consumption.

DOWNLOAD THE SMARTGYRO BROCHURE

SEAMLESS INSTALLATION

WE DON'T JUST MAKE IT POSSIBLE, WE MAKE IT EASY.

Whether refitting a classic cruiser or building a modern yacht, Smartgyro’s unique modular construction makes the process seamless.

By designing a unit that can be fully disassembled, Smartgyro has created new installation opportunities in vessels with small access spaces.

EXISTING BOATS
The base frame can be broken down into four parts to allow for installation through narrow access hatches, making refitting easier and more cost-efficient.

NEW BOATS
The unit’s compact dimensions allow boat builders to easily integrate Smartgyro into vessel design, including taking advantage of empty hull space.

MOTOR YACHT ISLAND

WORLD-CLASS WARRANTY

From installation to maintenance and beyond, we are committed to keeping our customers on the water.

Smartgyro recreational units come with unique
3 year / 2,000 hours warranty coverage for unrivaled peace of mind.

GLOBAL NETWORK

Smartgyro boasts a worldwide distribution, support and service network backed by our strategic partner YANMAR and its companies, including VETUS, Maxwell, and Flexofold.
