Power Profile

Platinum
Yanmar Australia

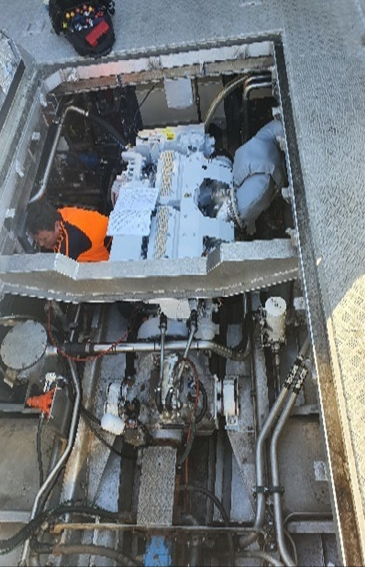

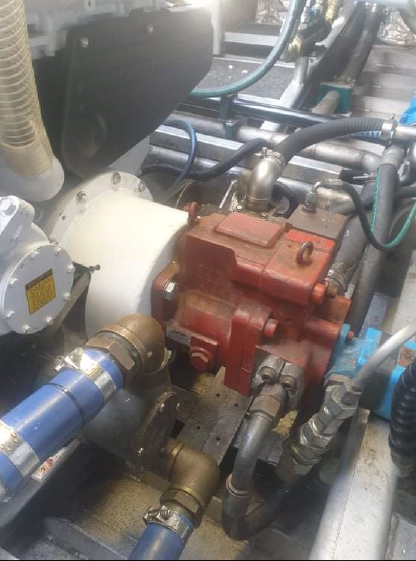

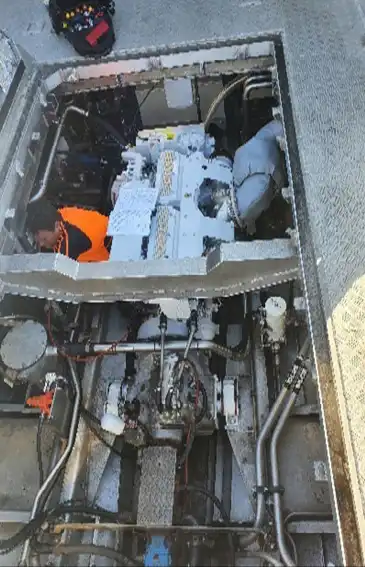

Platinum is a Mussel farm work vessel that was repowered after the failure of the V12 MAN. The original transmission was reused and the hydraulics remounted on the front using a live drive bell housing. New stainless exhaust and existing K4 controls. The vessel performs extremely well and is saving fuel by the ton. At the time I write this it has had its 1000hr service and has a perfect performance record to date. NOTE from customer. Thank you for a great engine which is giving us great service.

Like and Share:

Facebook
Twitter
Pinterest
LinkedIn

Application:

Commercial Marine

Engine Brand:

Yanmar

Engine Model:

6HYM-WET

Vessel Construction: Aluminum
Vessel Name: Platinum
Vessel Owner: Sanford Limited
Length (LOA): 19.1
Weight: 44 Tonnes
Power Rating: 515kW (700mhp) @ 2,200RPM
Drive Configuration: Fixed Pitch Propeller
Gear Ratio & Model: Ratio 2.5:1 / ZF665A
Control Type: Teleflex KE4T
Top Speed: 11 Knots
Cruise Speed: 9.3 Knots
Propeller: 34 x 33.5” Pitch x 4 Blade
Dealer: Seafarer Marine
Installation: Aimex New Zealand

Disclaimer: Power Equipment provides this Performance Report for general information only. This data is accurate only as to the exact date, time and specifications set out in this Report. YANMAR makes no warranties as to the performance or fuel consumption of any boat equipped with a Yanmar engine as numerous factors affect actual performance of an engine.
